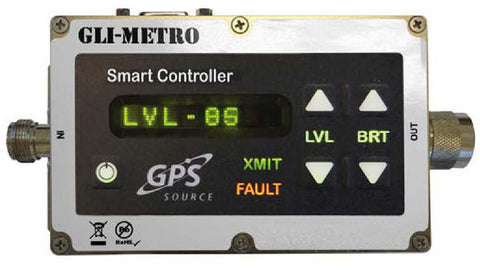

The METRO is a primary signal controller for GPS retransmission. It is an L1 or L1/L2 smart amplifier, designed for all applications that provides a calibrated 1dBm incremental output power control. When used in conjunction with an active GPS receive antenna, it will retransmit GPS signals inside a building, hangar or any structure where GPS is not available. It can be used in an automated test environment or in a shielded room that needs L1 or L1/L2 signal.
A user can easily use a push-button control to precisely determine the output power of the METRO signal. This reduces the need for multiple antennas, and multiple antenna cable runs, while lowering maintenance and installation costs.
Key Features
Features
- 1dBm incremental control over output signal level
- Frequency selectivity - L1 or L1/L2 GPS frequencies
- Continuous Built-In-Testing (BIT)
- Diagnostic Capabilities (Displays Faults)
- Automatic Oscillation Detection
- Use for any L1 or L1/L2 GPS retransmission application
Options
- AC or DC Power
- Multiple RF Connector Types
- L1 or L1/L2
Technical Data
